Thesis Work Type

About

This work type represents electronic theses and dissertation objects.

These objects should always have:

The final file uploaded by the student
A file generated by the system with frontmatter from the graduate school
Any extra supplemental files that the student has added

Example Current ETD

For this example, let’s use the contents of /trace.tennessee.edu/utk_graddiss/1004:

0-Supplemental_File_1.fasta
1-Supplemental_File_2.fasta
2-Supplemental_File_3.csv
3-Supplemental_File_4.csv
4-Supplemental_File_5.csv
metadata.xml
MorrisJames_May2011_dissertation.pdf
stamped.pdf

In our AWS bucket, we have:

a descriptive metadata file (metadata.xml)
the final original uploaded manuscript (MorrisJames_May2011_dissertation.pdf) from the depositor
a intermediary file with a cover page generated by Digital Commons and a acceptance page from the head of the graduate school.
supplemental files that the student has provided

The only way to determine which file is the original file submitted by the student is to make sure it is not listed in the metadata.xml file as a supplemental file.

<supplemental-files>
    <file>
        <archive-name>Supplemental_File_1.fasta</archive-name>
        <upload-name>Supplemental_File_1.fasta</upload-name>
        <url>https://trace.tennessee.edu/cgi/viewcontent.cgi?filename=0&amp;amp;article=2048&amp;amp;context=utk_graddiss&amp;amp;type=additional</url>
        <mime-type>text/plain</mime-type>
        <description>JCVI-CMR Catalase Database (FASTA format)</description>
    </file>
    <file>
        <archive-name>Supplemental_File_2.fasta</archive-name>
        <upload-name>Supplemental_File_2.fasta</upload-name>
        <url>https://trace.tennessee.edu/cgi/viewcontent.cgi?filename=1&amp;amp;article=2048&amp;amp;context=utk_graddiss&amp;amp;type=additional</url>
        <mime-type>text/plain</mime-type>
        <description>JCVI-CMR rpsL Database (FASTA format)</description>
    </file>
    <file>
        <archive-name>Supplemental_File_3.csv</archive-name>
        <upload-name>Supplemental_File_3.csv</upload-name>
        <url>https://trace.tennessee.edu/cgi/viewcontent.cgi?filename=2&amp;amp;article=2048&amp;amp;context=utk_graddiss&amp;amp;type=additional</url>
        <mime-type>application/vnd.ms-excel</mime-type>
        <description>Taxonomy of GOS catalase/rpsL hits</description>
    </file>
    <file>
        <archive-name>Supplemental_File_4.csv</archive-name>
        <upload-name>Supplemental_File_4.csv</upload-name>
        <url>https://trace.tennessee.edu/cgi/viewcontent.cgi?filename=3&amp;amp;article=2048&amp;amp;context=utk_graddiss&amp;amp;type=additional</url>
        <mime-type>text/plain</mime-type>
        <description>GOS catalase hits with metadata (CSV format)</description>
    </file>
    <file>
        <archive-name>Supplemental_File_5.csv</archive-name>
        <upload-name>Supplemental_File_5.csv</upload-name>
        <url>https://trace.tennessee.edu/cgi/viewcontent.cgi?filename=4&amp;amp;article=2048&amp;amp;context=utk_graddiss&amp;amp;type=additional</url>
        <mime-type>text/plain</mime-type>
        <description>GOS rpsL hits with metadata (CSV format)</description>
    </file>
</supplemental-files>

Suggested PCDM Model for Fedora

Samples are based on current mappings from the Notch8 mapping doc.

An ETD with supplemental files should look like this in Fedora.

The Whole Work

The ETD object should be a pcdmworks:Work and describe its relationship to its files along with its descriptive metadata elements.

In order to get this right, we have to decide whether the original file and stamped pdf is a pcdmworks:FileSet and thus a pcdm:Object or simply unrelated :code:`pcdm:File`s.

This is the simplest model where we only have files and no file sets. We have no preference in regards to filesets and will defer to the vendor for this.

@prefix pcdm: <http://pcdm.org/models#> .
@prefix pcdmuse: <http://pcdm.org/2015/05/12/use> .
@prefix pcdmworks: <http://pcdm.org/2016/02/16/works> .

<http://localhost/sample-etd> a pcdmworks:Work ;
    <http://purl.org/dc/terms/title> "The ‘Helper’ Phenotype: A Symbiotic Interaction Between Prochlorococcus and Hydrogen Peroxide Scavenging Microorganisms" ;
    pcdm:hasFile <http://localhost/etd_file_1>, <http://localhost/etd_file_2>, <http://localhost/etd_file_3>, <http://localhost/etd_file_suppl_1>, <http://localhost/etd_file_suppl_2>, <http://localhost/etd_file_suppl_3>, <http://localhost/etd_file_suppl_4>, <http://localhost/etd_file_suppl_5> .

The Original Uploaded ETD

The original ETD should be a pcdmuse:OriginalFile.

@prefix pcdm: <http://pcdm.org/models#> .
@prefix pcdmuse: <http://pcdm.org/2015/05/12/use> .
@prefix pcdmworks: <http://pcdm.org/2016/02/16/works> .

<http://localhost/etd_file_1> a pcdmuse:OriginalFile ;
    rdfs:label "MorrisJames_May2011_dissertation.pdf" ;
    pcdm:fileOf <http://localhost/sample-etd> .

This file does not need to be publicly accessible.

The Stamped File

The stamped file has a cover page generated by DigitalCommons and potentially 2 pages after the initial cover page that serve as acceptance by the major professor and committee members.

The initial cover page should not be kept, but the other pages that are not in the original file should.

This file should be the one accessed by users in the GUI.

Note: What should the label be?

@prefix pcdm: <http://pcdm.org/models#> .
@prefix pcdmuse: <http://pcdm.org/2015/05/12/use> .
@prefix pcdmworks: <http://pcdm.org/2016/02/16/works> .

<http://localhost/etd_file_2> a pcdmuse:PreservationFile, pcdmuse:IntermediateFile ;
    rdfs:label "stamped.pdf" ;
    pcdm:fileOf <http://localhost/sample-etd> .

Original Metadata File

We want to keep the original metadata in case there are questions about the migration or something that originally existed but not appearing in the metadata here.

Ideally, this would not be available to users (at least in the GUI).

@prefix pcdm: <http://pcdm.org/models#> .
@prefix pcdmuse: <http://pcdm.org/2015/05/12/use> .
@prefix pcdmworks: <http://pcdm.org/2016/02/16/works> .

<http://localhost/etd_file_3> a pcdm:File ;
    rdfs:label "metadata.xml" ;
    pcdm:fileOf <http://localhost/sample-etd> .

Supplemental Files

Some ETDS, like this, have supplemental files that we want to make available to users.

@prefix pcdm: <http://pcdm.org/models#> .
@prefix pcdmuse: <http://pcdm.org/2015/05/12/use> .
@prefix pcdmworks: <http://pcdm.org/2016/02/16/works> .
@prefix dcterms: <http://purl.org/dc/terms/> .
@prefix fabio: <http://purl.org/spar/fabio/> .

<http://localhost/etd_file_suppl_1> a fabio:SupplementaryInformation  ;
    rdfs:label "Supplemental_File_1.fasta" ;
    dcterms:description "JCVI-CMR Catalase Database (FASTA format)" ;
    dcterms:format "text/plain" ;
    pcdm:fileOf <http://localhost/sample-etd> .

<http://localhost/etd_file_suppl_2> a fabio:SupplementaryInformation ;
    rdfs:label "Supplemental_File_2.fasta" ;
    dcterms:description "JCVI-CMR rpsL Database (FASTA format)" ;
    dcterms:format "text/plain" ;
    pcdm:fileOf <http://localhost/sample-etd> .

<http://localhost/etd_file_suppl_3> a fabio:SupplementaryInformation ;
    rdfs:label "Supplemental_File_3.csv" ;
    dcterms:description "Taxonomy of GOS catalase/rpsL hits" ;
    dcterms:format "application/vnd.ms-excel" ;
    pcdm:fileOf <http://localhost/sample-etd> .

<http://localhost/etd_file_suppl_4> a fabio:SupplementaryInformation ;
    rdfs:label "Supplemental_File_4.csv" ;
    dcterms:description "GOS catalase hits with metadata (CSV format)" ;
    dcterms:format "text/plain" ;
    pcdm:fileOf <http://localhost/sample-etd> .

<http://localhost/etd_file_suppl_5> a fabio:SupplementaryInformation ;
    rdfs:label "Supplemental_File_5.csv" ;
    dcterms:description "GOS rpsL hits with metadata (CSV format)" ;
    dcterms:format "text/plain" ;
    pcdm:fileOf <http://localhost/sample-etd> .

Google Scholar

In order to insure discoverability in Google Scholar, highwire press meta tags should be used.

Our metadata mapping will include this conversion for this worktype.

<meta name="citation_title" content="The ‘Helper’ Phenotype: A Symbiotic Interaction Between Prochlorococcus and Hydrogen Peroxide Scavenging Microorganisms">
<meta name="citation_authors" content="Morris, James Jeffrey">
<meta name="citation_date" content="2011">
<meta name="citation_pdf_url" content="http://our-future-repository.utk.edu/downloads/etd_file_2">

Descriptive Metadata Mapping

Name	Display Label	Property	Description	Required	Obligation	Admin only	Facetable	Brief Results	Vocab	Syntax	Metatags
abstract	Abstract	http://purl.org/dc/terms/abstract	A summary of the resource.	Required	1-n	no	no	yes	none		citation_abstract, dcterms.abstract
additional_advisor	Additional Advisor	http://id.loc.gov/vocabulary/relators/dgs	A person overseeing a higher level academic degree	Optional	0-n	no	no	no	none
author	Author	http://id.loc.gov/vocabulary/relators/aut	The characters that should be displayed after a person’s name	Required	1-n	no	yes	yes	none		citation_author
classification	Classification	https://dbpedia.org/ontology/classification	A string representing a class or category the resource is assigned to for browsing purposes	Required	1	no	yes	no	local yml file
college	College	https://dbpedia.org/ontology/college	The college associated with the resource’s creator.	Optional	0-n	no	yes	no	local yml file
degree_date	Degree Date	http://purl.org/cerif/frapo/hasMilestone	Graduation date	Required	1	no	no	no	none	ISO-8601	citation_date
degree_name	Degree Name	http://purl.org/ontology/bibo/degree	Name of the degree	Required	1	no	yes	no	local yml file
department	Department	http://vivoweb.org/ontology/core#departmentOrSchool	Name of the associated academic department	Required	1-n	no	yes	no	local yml file
discipline	Discipline	http://dbpedia.org/ontology/academicDiscipline	A concept that identifies a field of knowledge or human activity defined in a controlled vocabulary, such as Computer Science, Biology, Economics, Cookery or Swimming.	Required	1-n	no	yes	no	local yml file		citation_keywords
doi	DOI	http://purl.org/ontology/bibo/doi	A DOI (Digital Object Identifier), a unique identifier for this resource.	Optional	0-1	no	no	no	none	DOI syntax	citation_doi
date_embargo	Embargo Date	http://purl.org/spar/fabio/hasEmbargoDate	The date before which an entity should not be published, or before which a press release should not be reported on.	Optional	0-1	no	no	no	none	ISO-8601
institution	Institution	http://id.loc.gov/vocabulary/relators/dgg	An institution that acts as a host, for example of a project, a resource or a person, for example by providing accommodation, services, operational support and/or funding.	Required	1	yes	no	no	LCNAF		citation_dissertation_institution, citation_author_institution
keywords	Keyword	https://w3id.org/idsa/core/keyword	Keywords that describe the nature, purpose, or use of the content.	Optional	0-n	no	no	no	none		citation_keywords
notes	Note	http://www.w3.org/2004/02/skos/core#note	A general note, for any purpose.	Optional	0-n	no	no	no	none
orcidID	Orcid ID	http://purl.org/cerif/frapo/hasORCID	An ORCID identifier (not the URL) of a researcher	Optional	0-n	no	no	no	ORCID	ORCID URL	citation_author_orcid
primary_advisor	Primary Advisor	http://id.loc.gov/vocabulary/relators/ths	A person under whose supervision a degree candidate develops and presents a thesis, mémoire, or text of a dissertation	Required	1-n	no	yes	no	ORCID
date_publication	Publication Date	http://purl.org/dc/terms/issued	Date of formal issuance of the resource.	Required	1	no	yes	no	none	ISO-8601	citation_date, citation_publication_date
subject	Subject	http://purl.org/dc/terms/subject	A topic of the resource.	Optional	0-n	no	yes	no	FAST		citation_keywords
date_submission	Submission Date	http://purl.org/dc/terms/dateSubmitted	Date of submission of the resource.	Required	1	no	no	no	none	ISO-8601
title	Title	http://purl.org/dc/terms/title	A name given to the resource.	Required	1	no	no	yes	none		citation_title
type	Type	http://www.europeana.eu/schemas/edm/hasType	This property relates a resource with the concepts it belongs to in a suitabletype system such as MIME or any thesaurus that captures categories ofobjects in a given field (e.g., the “Objects” facet in Getty’s Art andArchitecture Thesaurus). It does not capture aboutness.	Required	1-n	no	yes	no	no
language	Language	http://purl.org/dc/terms/language	The language of the resource.	Optional	0-n	no	no	no	local yaml or ISO 639-1 list	ISO 639-1 two-letter code	citation_language

User Expectations

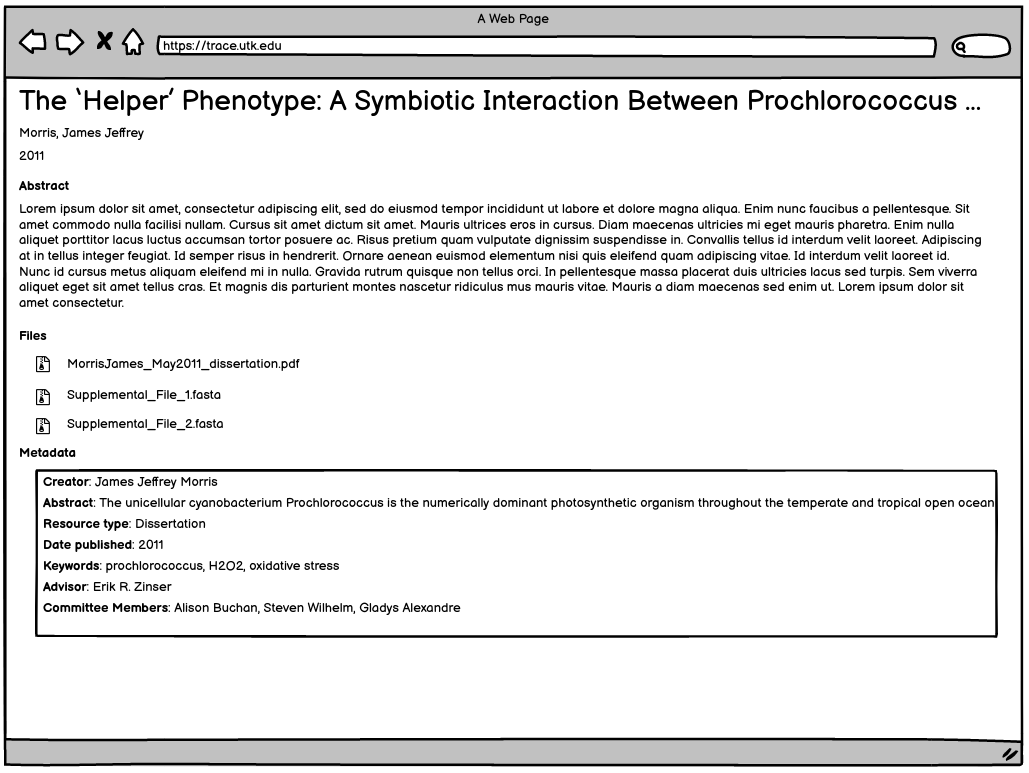

The user should see a thumbnail, the title, and other pertinent metadata defined in our metadata mapping.

Restricted files should be appropriately restricted.

Unrestricted files should be available beneathe the metadata.

For UTK Faculty and Staff Only

Migration Scope

All objects from these two collections should get this work type.

utk_graddiss
utk_gradthes

Suggested Actions

If an object originated as a .doc or .docx, we need the pdf instead for cover page generation.
We will provide the vendor for migration pages with front matter but without the coverpage.
The vendor will build a feature to add the appropriate cover page.
The vendor will build a feature for front matter going forward.

Other Relevant Approaches in the Wild

The Carolina Digital Repository has a masters thesis that consists of multiple PDFS that appears in Google Scholar.

There are some things to note about it:

Only one of the PDFs is significant to Google Scholar.

When you click it, you are sent to that PDF.

This is done with this Highwire Press metatag.

<meta name="citation_pdf_url" content="http://cdr.lib.unc.edu/downloads/pr76fc68x">

This is a good example for navigating Google Scholar’s requirements which having ETDs that consist of multiple files.
